2D Color Array(B&W) to Boolean Array and XYgraph

Continuing from previous post BMP to 2D Color array

This time 2D array to 2D boolean with subset and scaling , then to xy Graph.

Programming Language used: LabVIEW®

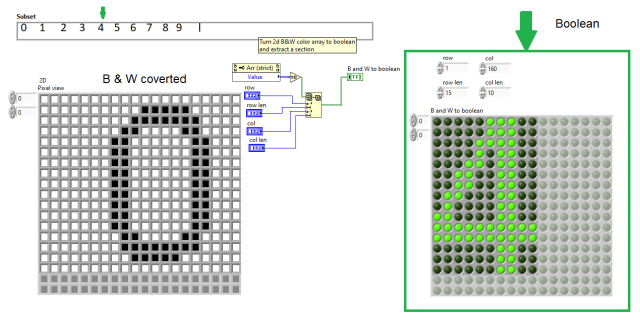

2D color array(which was turn to B&W image-see previous post) to Boolean with pixel view subset (selecting number 4 area)

2D B&W color to boolean array

Scaling col and row2D Boolean Scaled

Now scaled boolean to XY Graph (only True are added to list of points for graph)

2D Boolean Image to XY Graph

LabVIEW® is a National Instruments product
This post is not connected or endorsed by any company.
All company names are trademark of respective company.
Created to spark ideas on the subject.
Use at your own risk.
