2D Pixel BW to objects grouping

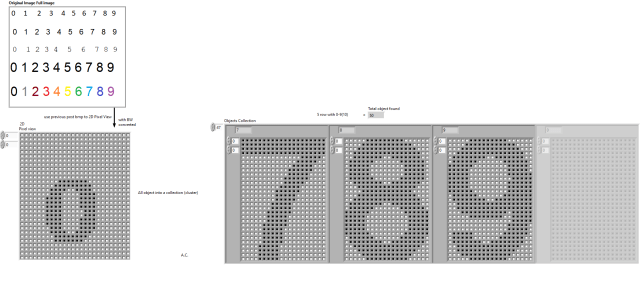

Collecting all the objects into a cluster from the 2D Pixel B&W previously created.

(see previous posts)

2D Pixel array must have been created from a well defined row spaced images.

First row grouping then column grouping.

Similar to edge detection when complete row is “not a space(just be an object) ” or a space.

Programming Language: LabVIEW® 2019 (a National Instruments product)

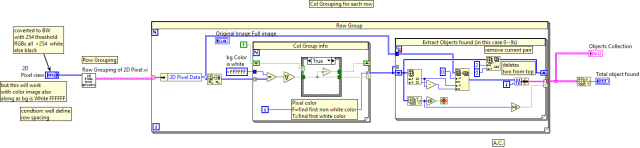

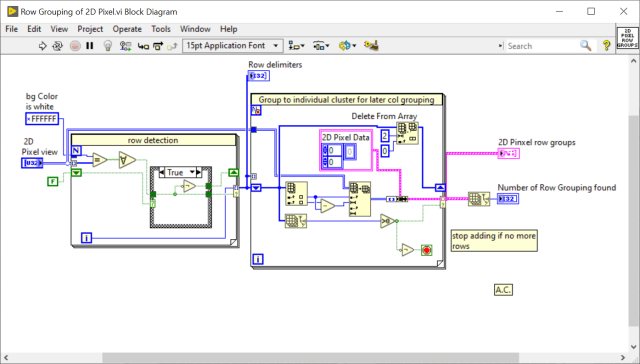

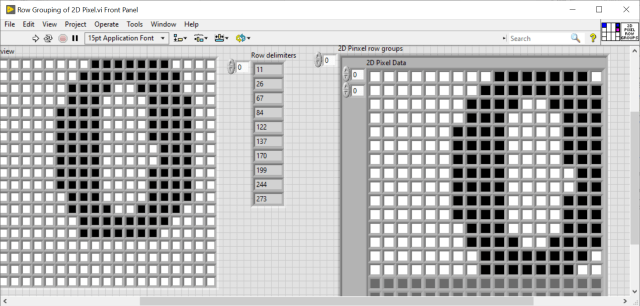

LV_ImageBMP_TitleRow Grouping FirstRow Grouping First code2D Pixel Object Grouping2D Pixel Object Grouping_code1



Paint used in this presentation is a Microsoft product
LabVIEW® is a National Instruments product
This post is not connected or endorsed by any company.
All company names are trademark of respective company.
Created to spark ideas on the subject.
Use at your own risk.
