LV Test Data Image 0-9s

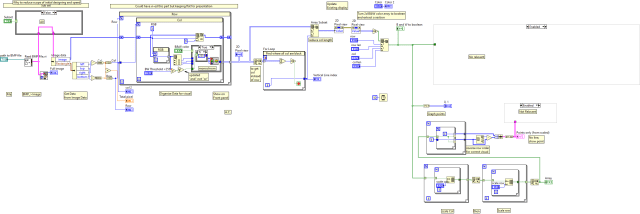

Loading a bigger file then previous post (that was a small 9×11 pixel pattern)

This time using a set of 0 — 9 numbers

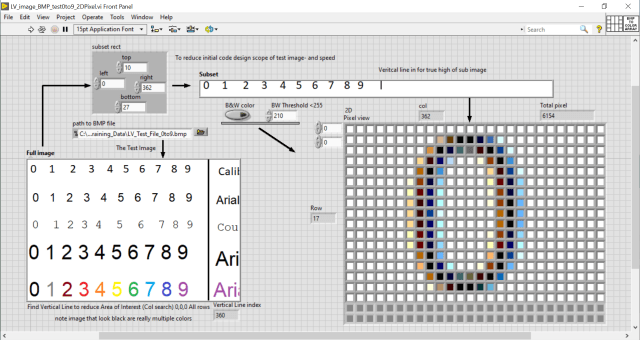

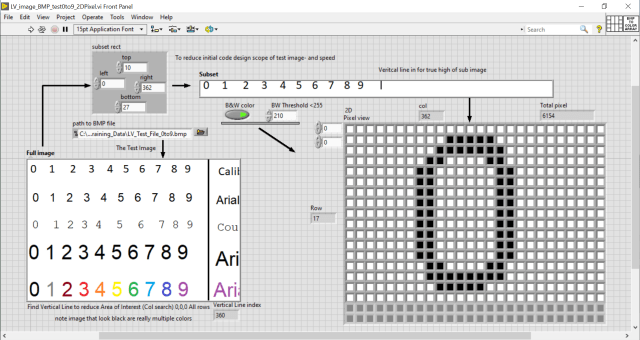

Image is row of number with description of font used.

A full black vertical line is used to separate the test numbers from the description (i use this later to chop off part of the image to reduce post processing in future.

Programming Language used: LabVIEW®

Test image created with Microsoft’s Paint.




Paint used in this presentation is a Microsoft product
LabVIEW® is a National Instruments product
This post is not connected or endorsed by any company.
All company names are trademark of respective company.
Created to spark ideas on the subject.
Use at your own risk.


About LV_TS_Test_Engineer_3000_VI

Automated Test Equipment Software
