Provide the operator with a Dialog for task which take time to complete.

Sometime a process take time to complete. Its would be a good idea to provide the operator with a dialog and show a time in seconds so they know the application did not have an issue.

Development system used: LabVIEW(r)

Provide a Dialog to Operator for task which

Front Panel (also showing input and output which are not normally shown to operator

but show for completeness.

LV Dialog-Show all front panel

Code

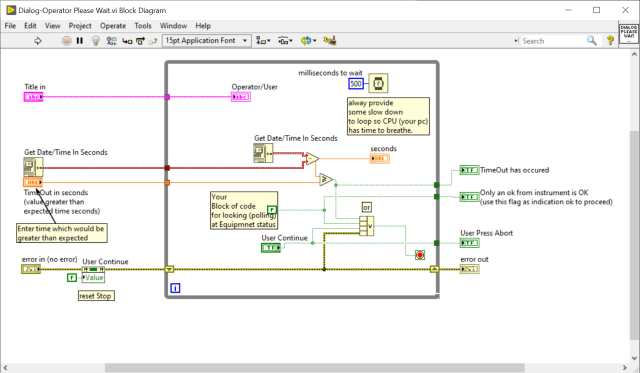

LV Dialog Operator Please Wait

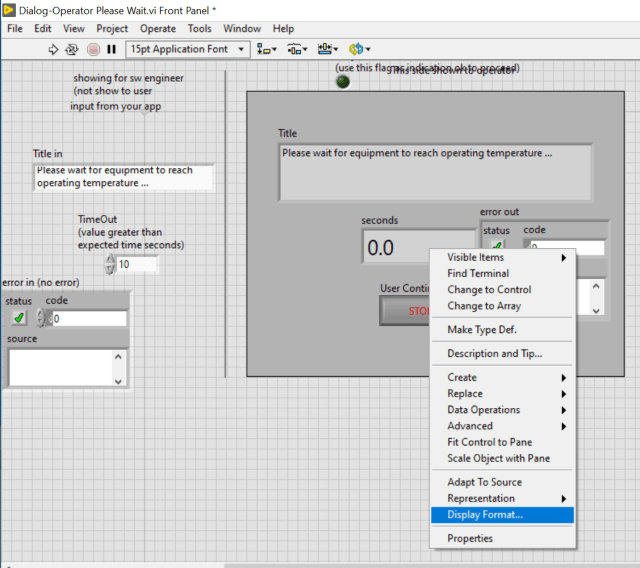

Changing the Seconds for n.n format

seconds display format

One Decimal point

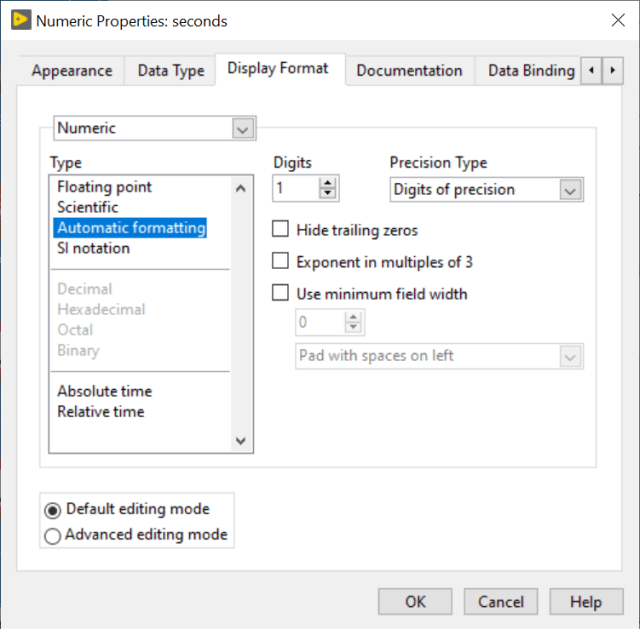

Set Seconds indicator for 1 decimal place

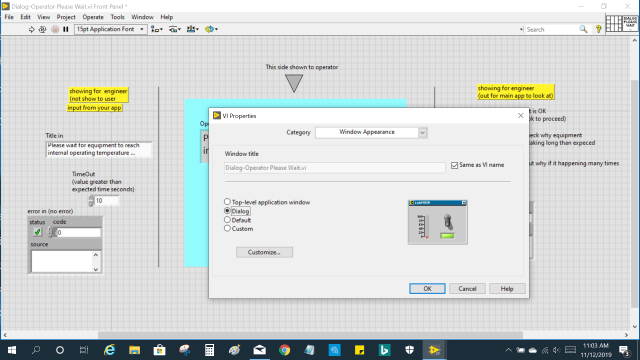

Setting module to appear as a dialog.

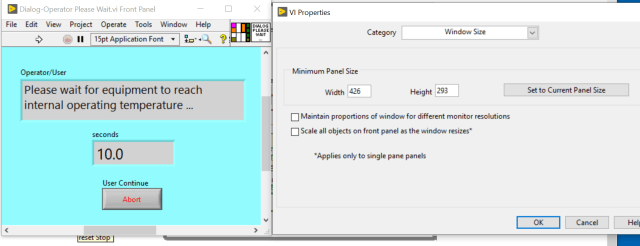

Set Windows Appearance to DialogLV Dialog Set window size for operator

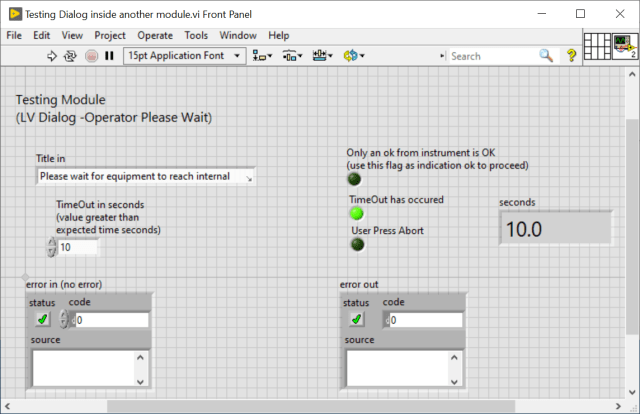

Testing of Dialog

Testing of LV Dialog

Screen Capture before timeout (above was final) below shown with control as constant

so its easier to see matching info.

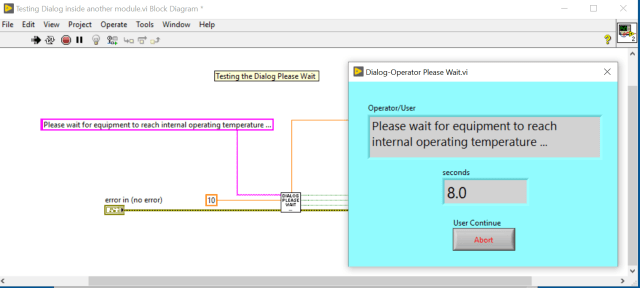

LV Dialog Testing in another Module

Dialog appearance as a LV Dialog

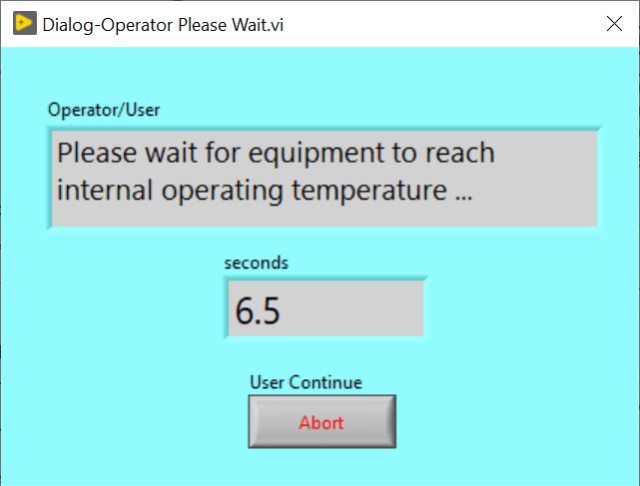

Final Appearence Size




LabVIEW® is a National Instrument product

This post is not connected or endorsed by any company.

Created to spark ideas on the subject.

Use at your own risk.
