Finding Exponent that best matches a exponent type data set in LV base version – two methods – (one setup , Focus Targeting- Coarse-Fine).

Labview(r) base version does not have fitting functions so using this time to show two methods (one setup , Focus Targeting- Coarse-Fine).

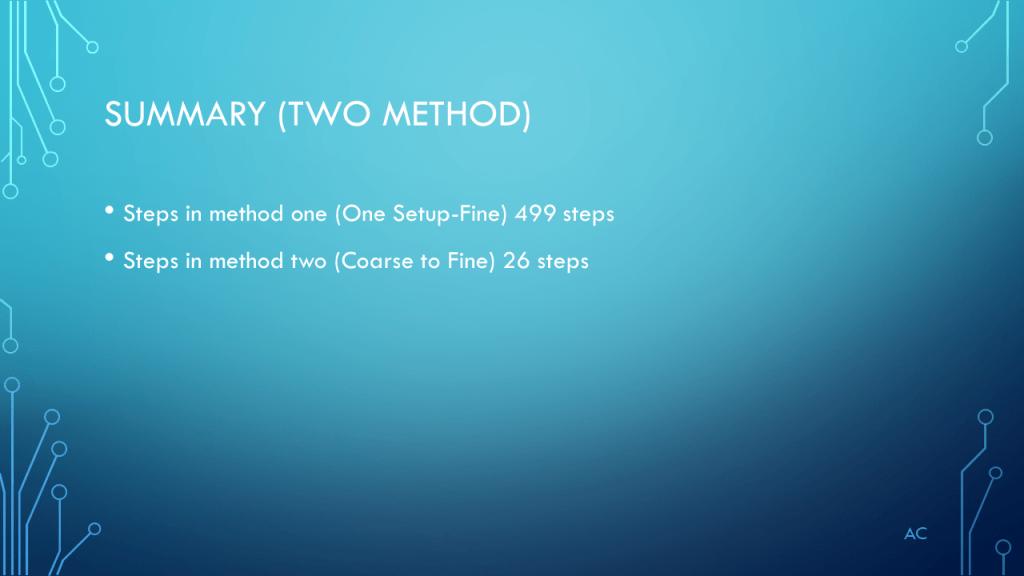

The 2nd method will result in reduce steps counts

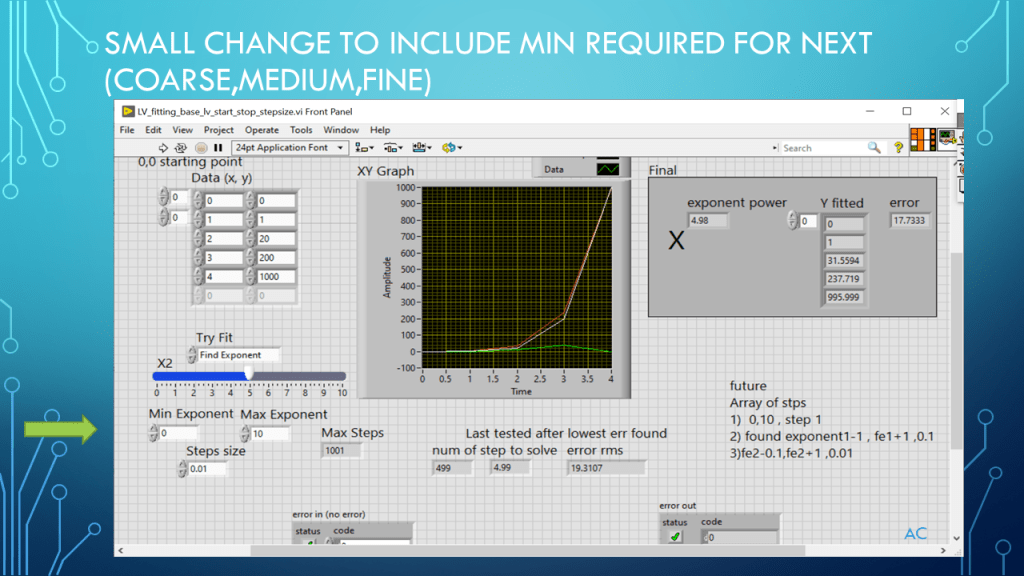

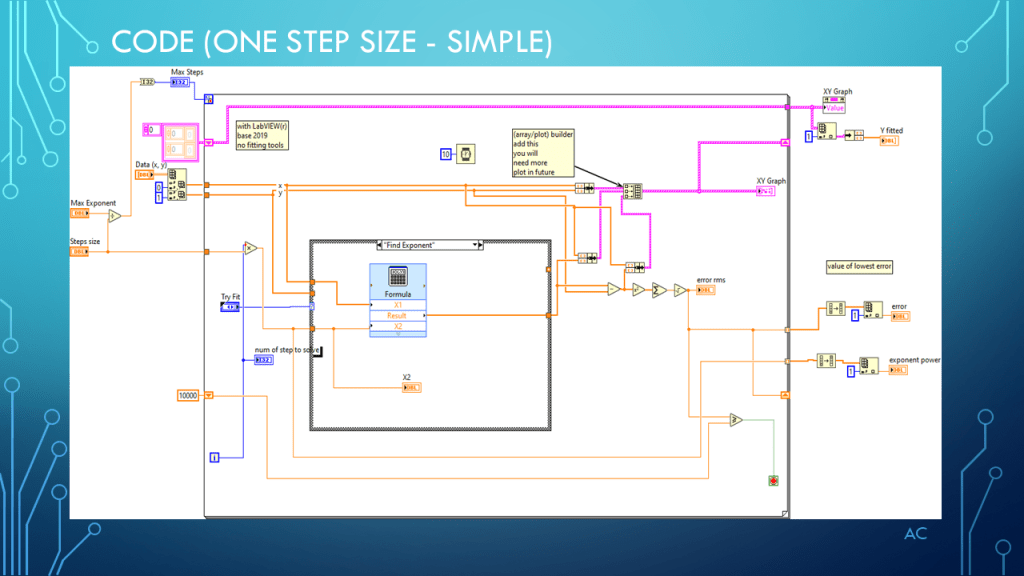

One setup for the required resolution (499 steps)

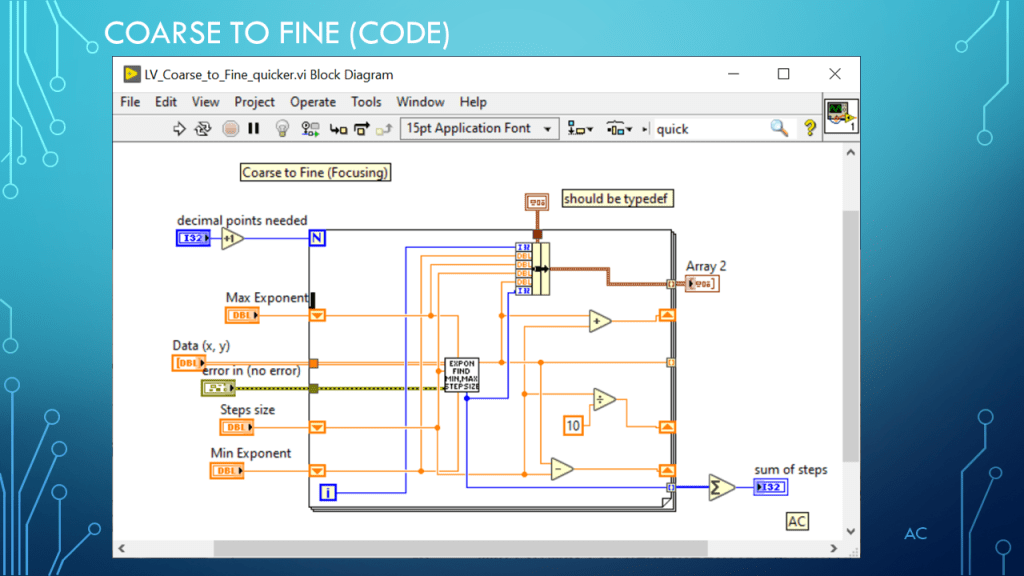

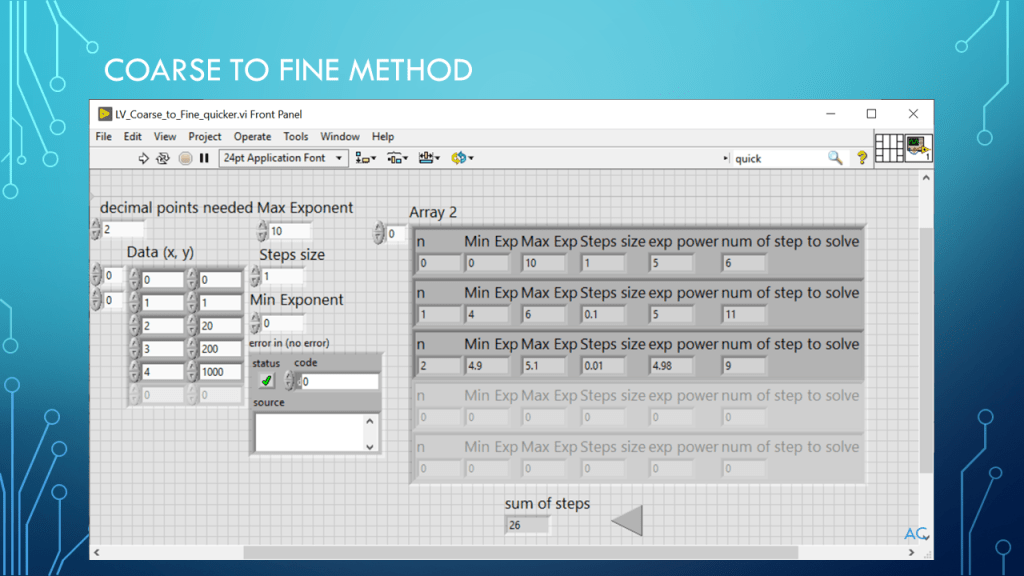

Focus Targeting- Coarse fine (26 steps)

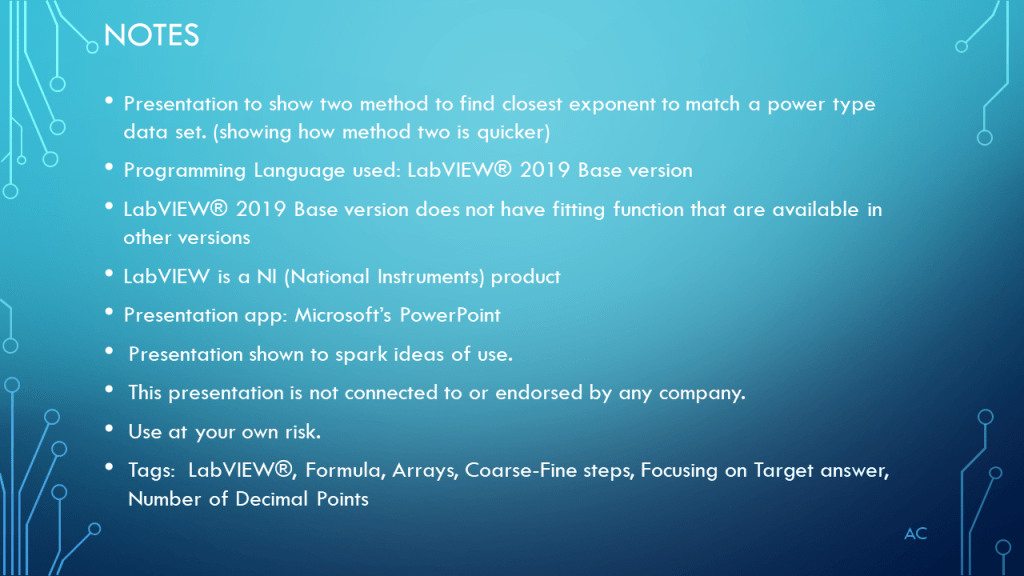

•Presentation to show two method to find closest exponent to match a power type data set. (showing how method two is quicker)

•Programming Language used: LabVIEW® 2019 Base version

•LabVIEW® 2019 Base version does not have fitting function that are available in other versions

•LabVIEW is a NI (National Instruments) product

•Presentation app: Microsoft’s PowerPoint

•Presentation shown to spark ideas of use.

•This presentation is not connected to or endorsed by any company.

•Use at your own risk.

Tags:  LabVIEW®, Formula, Arrays, Coarse-Fine steps, Focusing on Target answer, Number of Decimal Points

About LV_TS_Test_Engineer_3000_VI

Automated Test Equipment Software
