LV Classes Intro (Base Template class and two Child Class)

Show a parent base class and two child class created in LabVIEW®

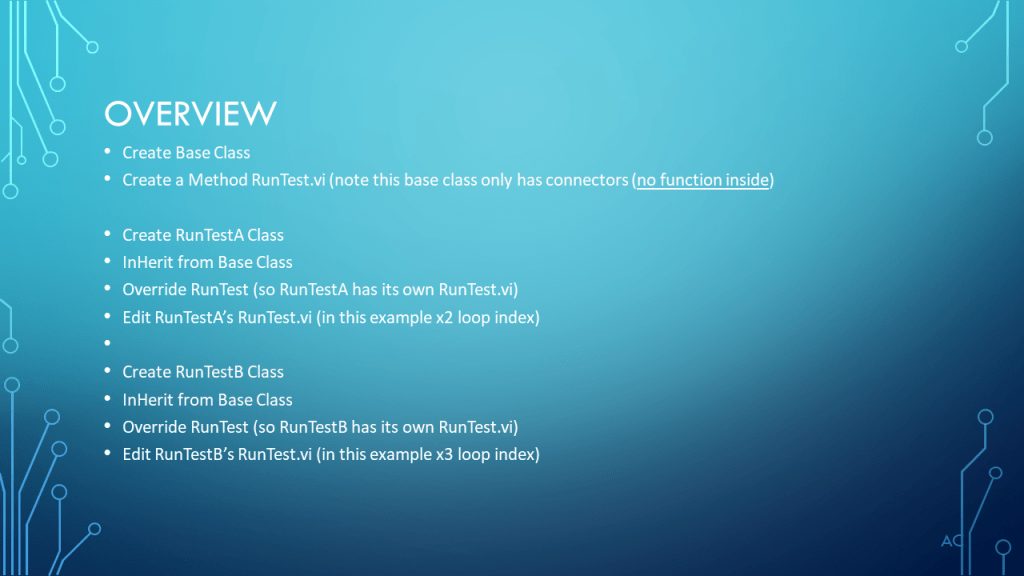

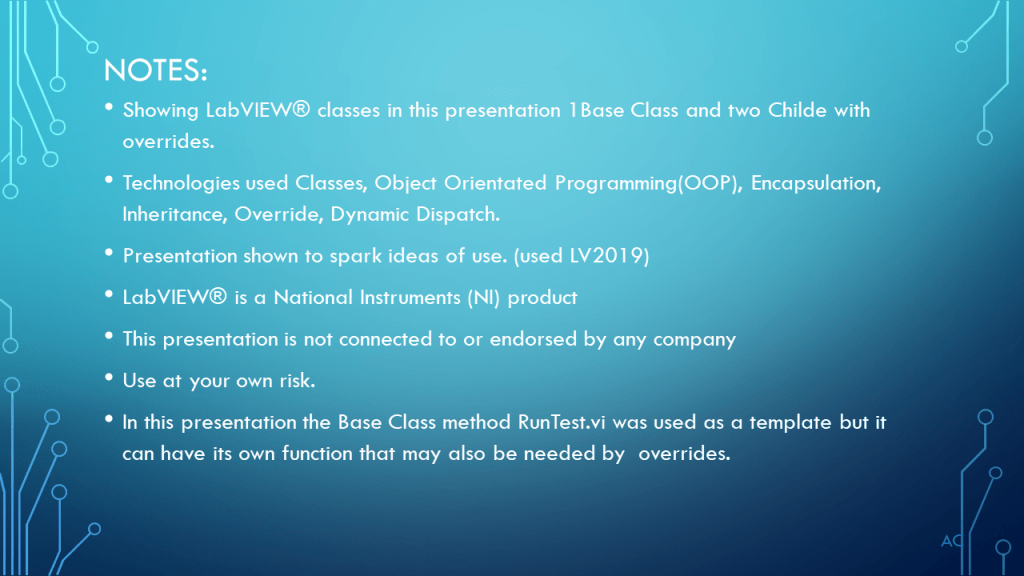

•Showing LabVIEW® classes in this presentation 1Base Class and two Child with overrides.

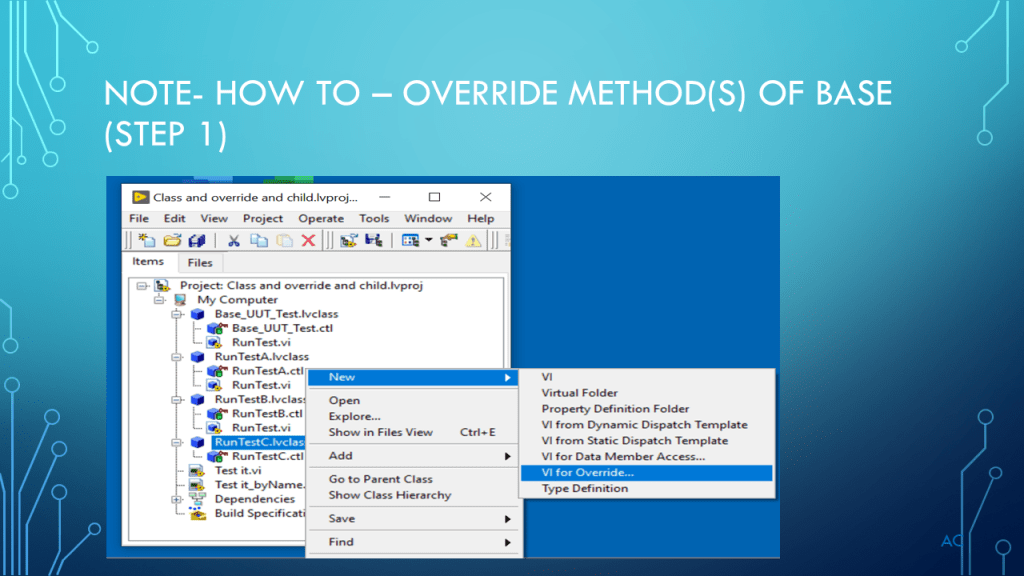

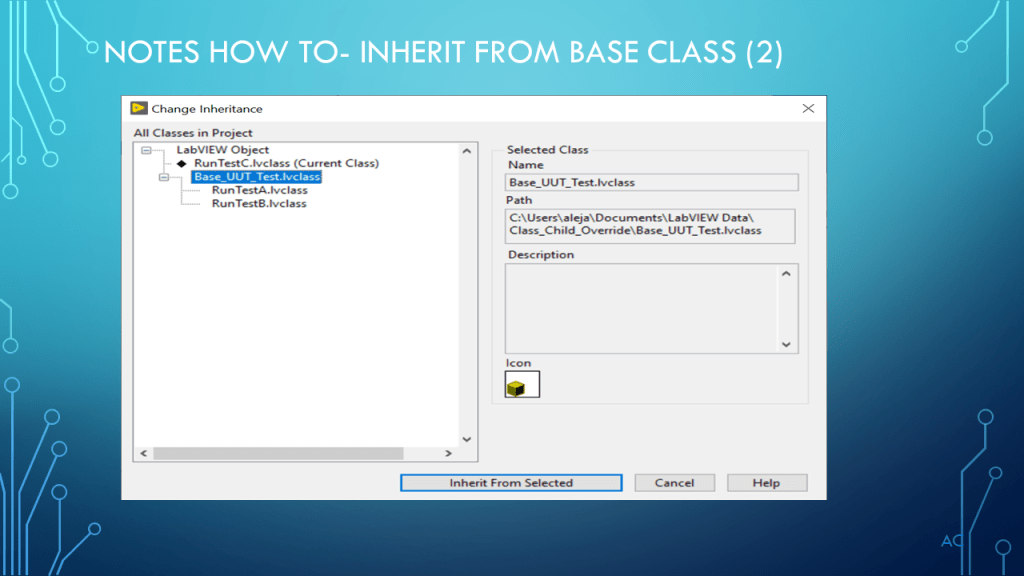

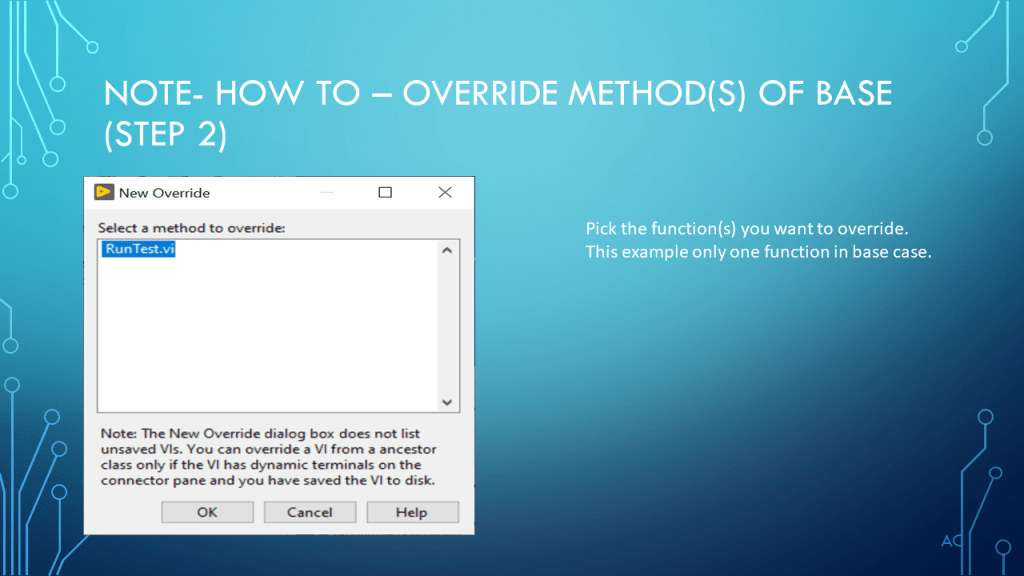

•Technologies used Classes, Object Orientated Programming(OOP), Encapsulation, Inheritance, Override, Dynamic Dispatch.

•Presentation shown to spark ideas of use. (used LV2019)

•LabVIEW® is a National Instruments (NI) product

•This presentation is not connected to or endorsed by any company

•Use at your own risk.

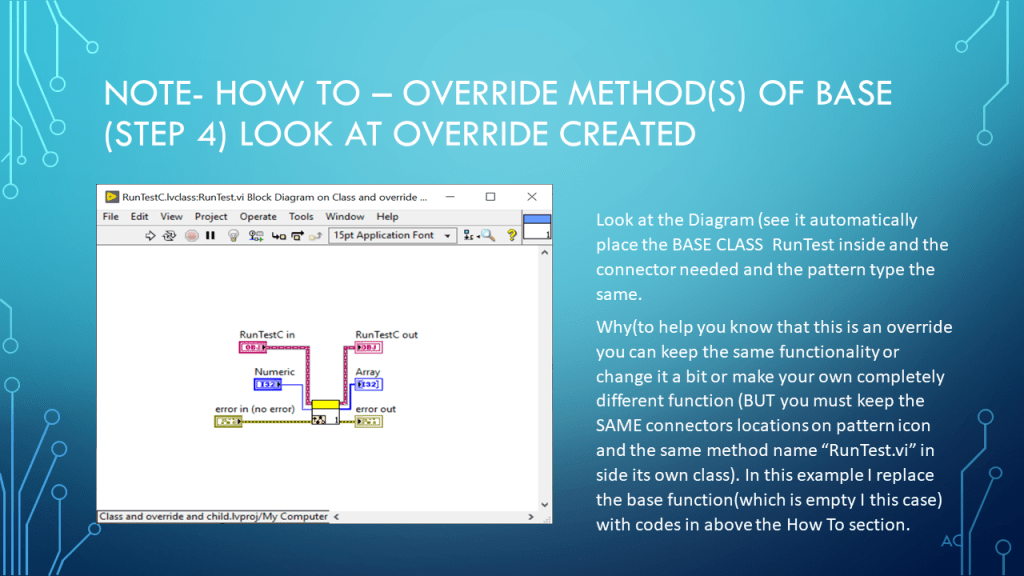

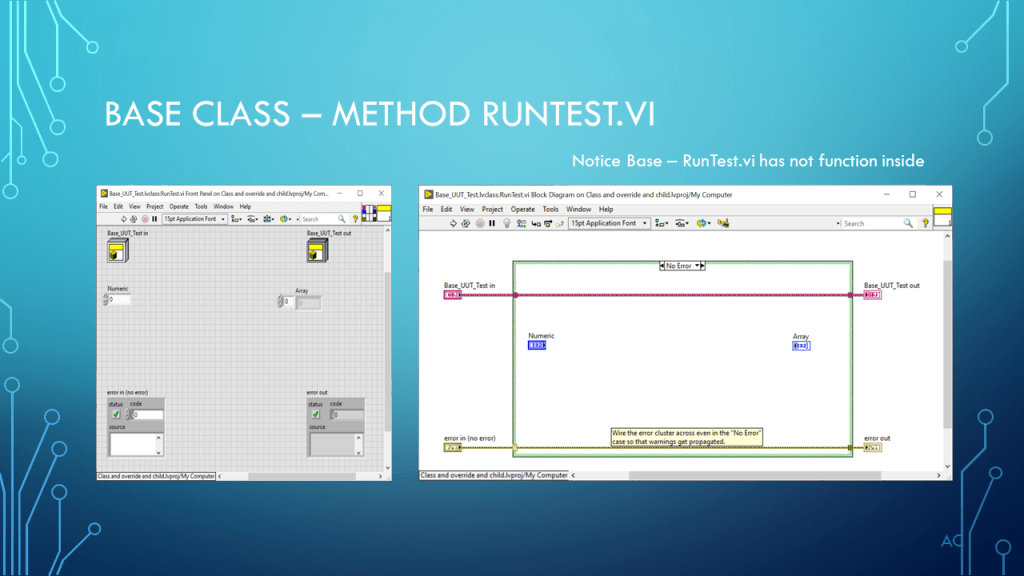

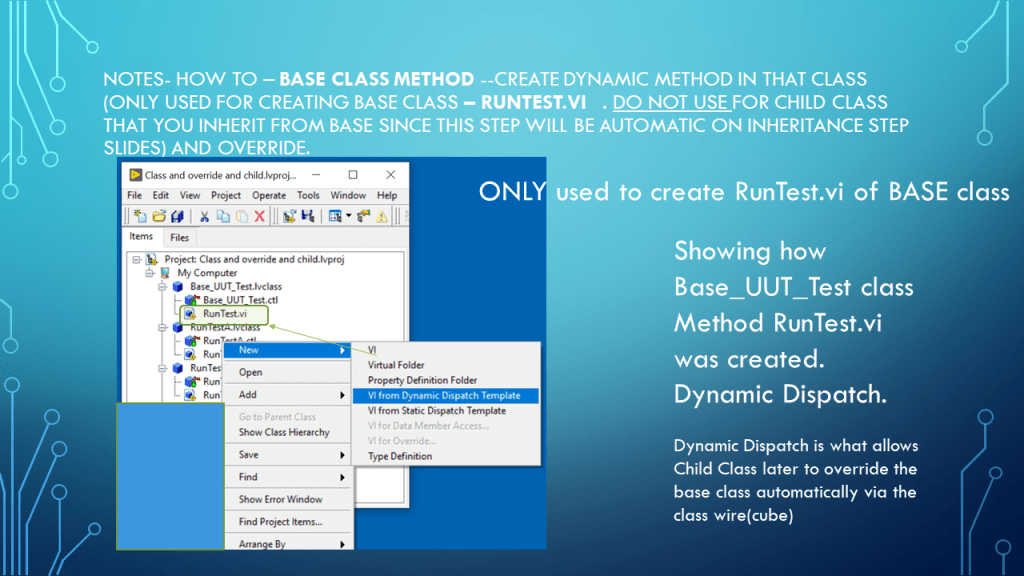

•In this presentation the Base Class method was used as a template but it can have its own function that may also be needed by  overrides.
