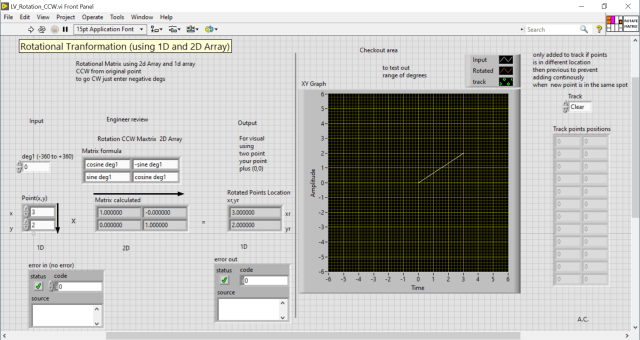

LV Rotational Matrix using Array

Using 1D array for x,y.

Using 2D for the rotational matrix

using the CCW for positive deg

Program Language: LabVIEW® 2019

Add a tracking of points just to verify a circle.

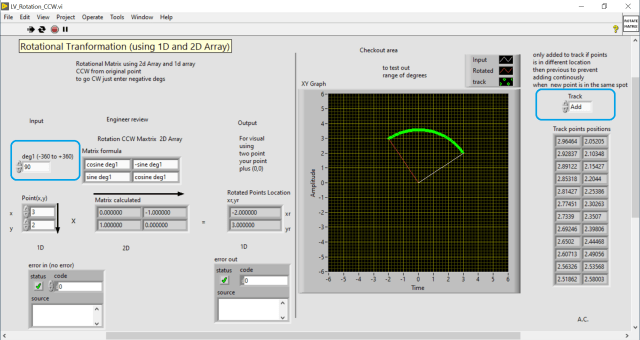

turn on Track of points and incremented to 90 at 1deg step.

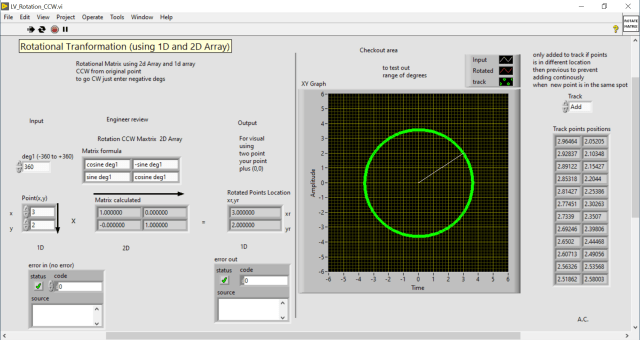

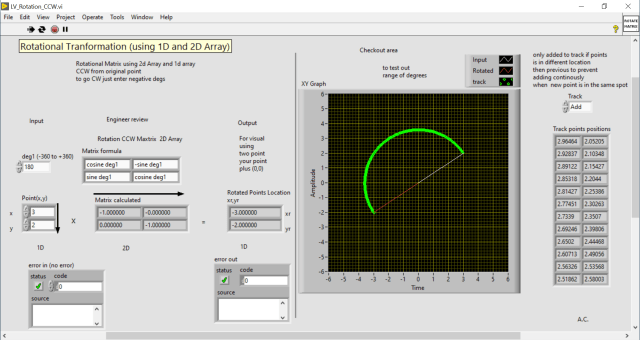

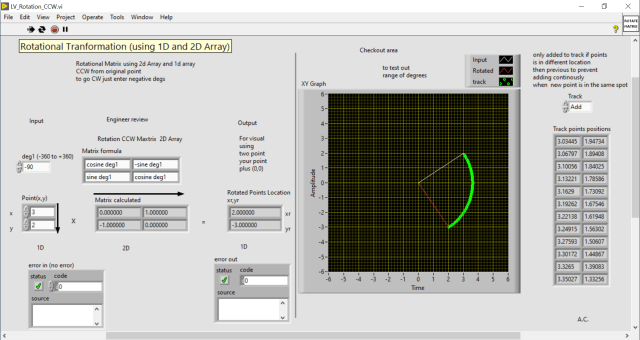

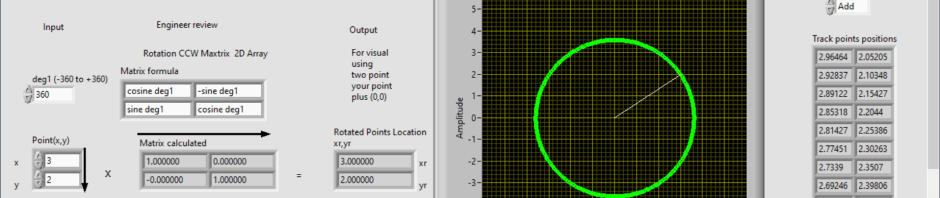

LV_Rota_Matrix_Incre to 90LV_Rota_Matrix_Incre to 180LV_Rota_Matrix_Incre to 270LV_Rota_Matrix_Incre to 360LV_Rota_Matrix_Incre to N90
