Create Event Case from Front Panel LV2019

Posted on November 14, 2019 by LV_TS_Test_Engineer_3000_VI

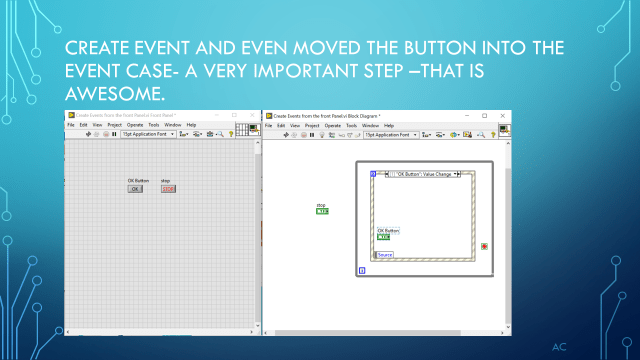

I did not see this the the previous LV that i was using 2015, but in LV2019 their is a way to create event case  for object (ex buttons) from the “front panel” and it even put the button inside the event case which is important for proper function of buttons.

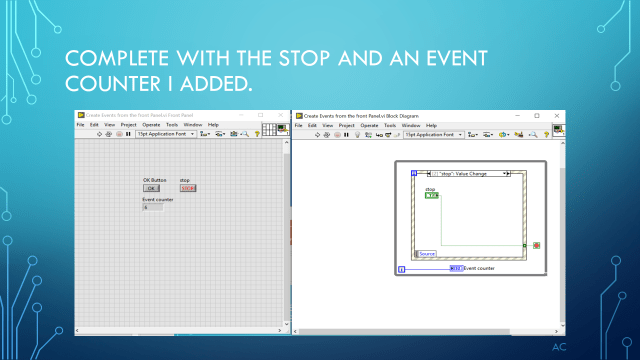

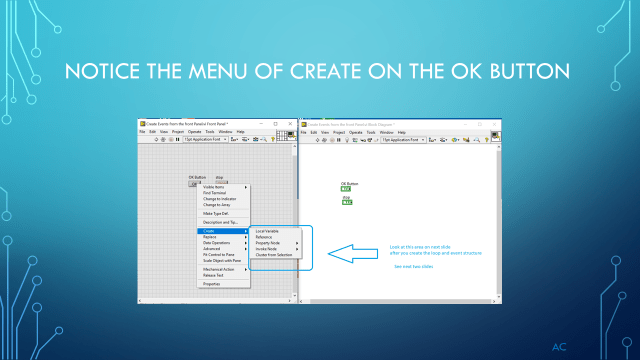

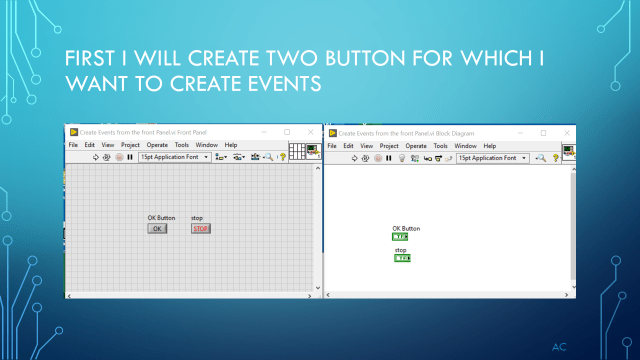

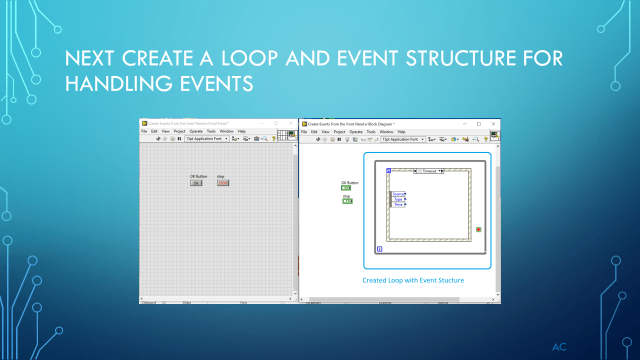

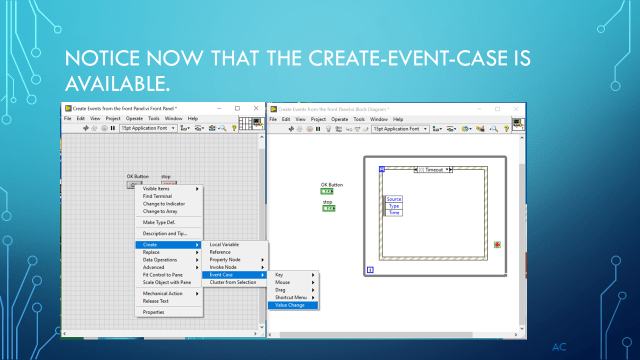

EventLV2019Slide1EventLV2019Slide2EventLV2019Slide3EventLV2019Slide4EventLV2019Slide5EventLV2019Slide6EventLV2019Slide7

EventLV2019Slide8



LabVIEW® is a National Instrument product
This post is not connected or endorsed by any company.
Created to spark ideas on the subject.
Use at your own risk.
