RF Attenuator – Protect DUT and Measuring Device

RF Attenuator reduce RF power.

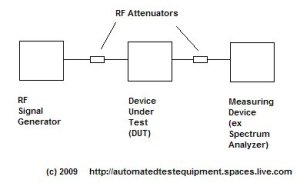

One purpose is to protect both the DUT and Measuring Device from exceeding input power max.
Exceeding input power can damage expensive DUT and Measuring Device (ex Spectrum Analyzer).
RF Attenuator come as Fixed,Manual (steps), Programmable,Variable.
Selection of RF attenuator
  • Frequency Range
  • Low VSWR
  • Correct Power Rating
  • Low Insertion loss
RF Attenuator Vendor /Manufacturers.
JWF Industries
     Fixed Attenuator  http://www.jfwindustries.com/fixed.html
     Programmable Attenuator   http://www.jfwindustries.com/programmable.html
MECA Electronics
Pasternack Enterprises
