LV Cluster to 2D string





A method to turn a Cluster(s) into a Section – Key – Value.

Created to spark ideas on turning LV cluster to 2D String using only LV’s  Data Parsing and properties.

In the DataType case structure the following was decode String,Numeric,double,path which is a small subset of Data Types available in LabVIEW

What was used

  • Two simple clusters
  • LabVIEW 2019 ®

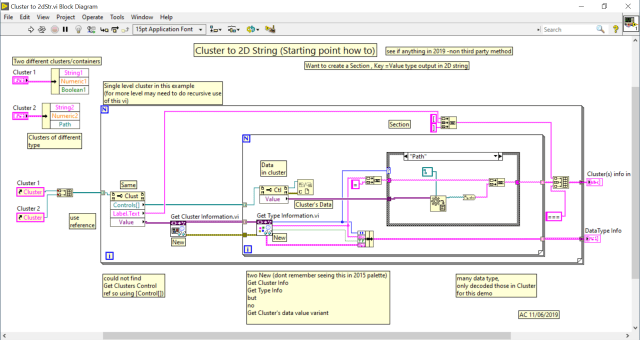

Cluster to 2D str code

Front Panel        Input Left      Output RightClsuter to 2D Str Output








LabVIEW® is a National Instrument product

This post is not connected or endorsed by any company.

Created to spark ideas on turning LV cluster to 2D String.

Use at your own risk.
